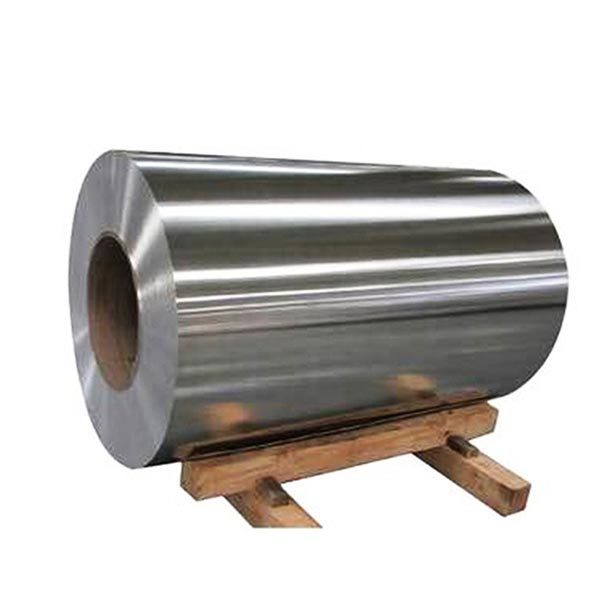

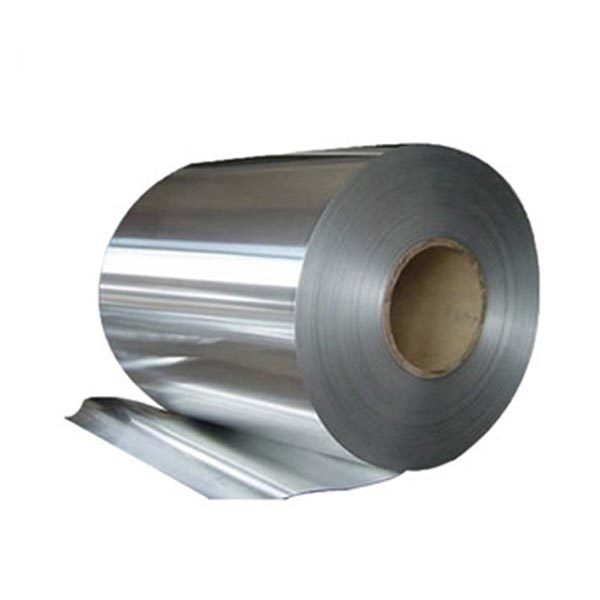

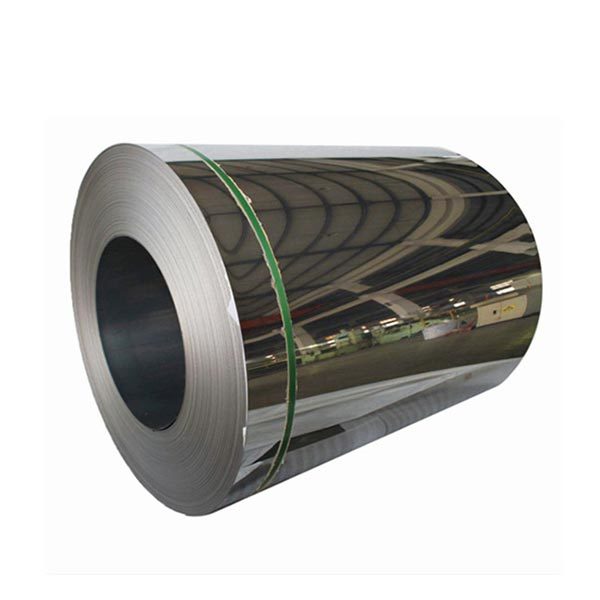

202 Stainless Steel Coil
- Commodity name： 202 Stainless Steel Coil
Keyword:
202 Stainless Steel Coil
- PRODUCT DESCRIPTION
-
202 Stainless Steel Coil Description
202 stainless steel is an austenitic chromium-nickel-manganese alloy. It has high ductility, good corrosion resistance and excellent toughness in both high and low temperature environments. 202 stainless steel is one of the most widely used 200 series stainless steel. 202 stainless steel, the austenitic structure is stabilized by the addition of nickel and manganese, thereby preventing the formation of harmful phases, such as sigma phase or chromium carbide. The high nickel content also improves the corrosion and oxidation resistance of the steel at high temperatures.
Product ParametersProduct Name
202 Stainless Steel Coil
Type
Steel Coil
Thickness
2.5mm-10.0mm
Length
2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc.
Width
610mm-2000mm
Standard
ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface
BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Scope of Application
Widely used in high temperature and electrical industry, medical equipment construction, chemical, food industry, agriculture and ship parts, food and beverage packaging,
Kitchen supplies, trains, airplanes, conveyor belts, vehicles, bolts, nuts, springs and screens, etc.
Certificate
ISO, SGS, BV, etc.
Production Technology
Hot Rolling, Cold Rolling
Edge Processing
Edging, Trimming
Chemical Composition
C
Si
Mn
Cr
Ni
S
P
≤ 0.15
≤1.0
7.5~10.0
17.00~19.00
4.00~6.00
≤ 0.03
≤ 0.06
Mechanical Properties
Tensile Strength Kb (MPa)
Yield Strength σ0.2 (MPa)
Elongation D5 (%)
Hardness
≥ 520
≥ 275
≥40-50
≤207HB；≤ 95 HRB;≤218HV
Physical Performance
Density(g/cm³)
Modulus of Elasticity(Gpa)
Coefficient of Thermal Expansion(10-6/°C)
Coefficient of Thermal Conductivity(W/m*K)
Resistivity(μohm.in)
7.93
203
17.5
16.3
22

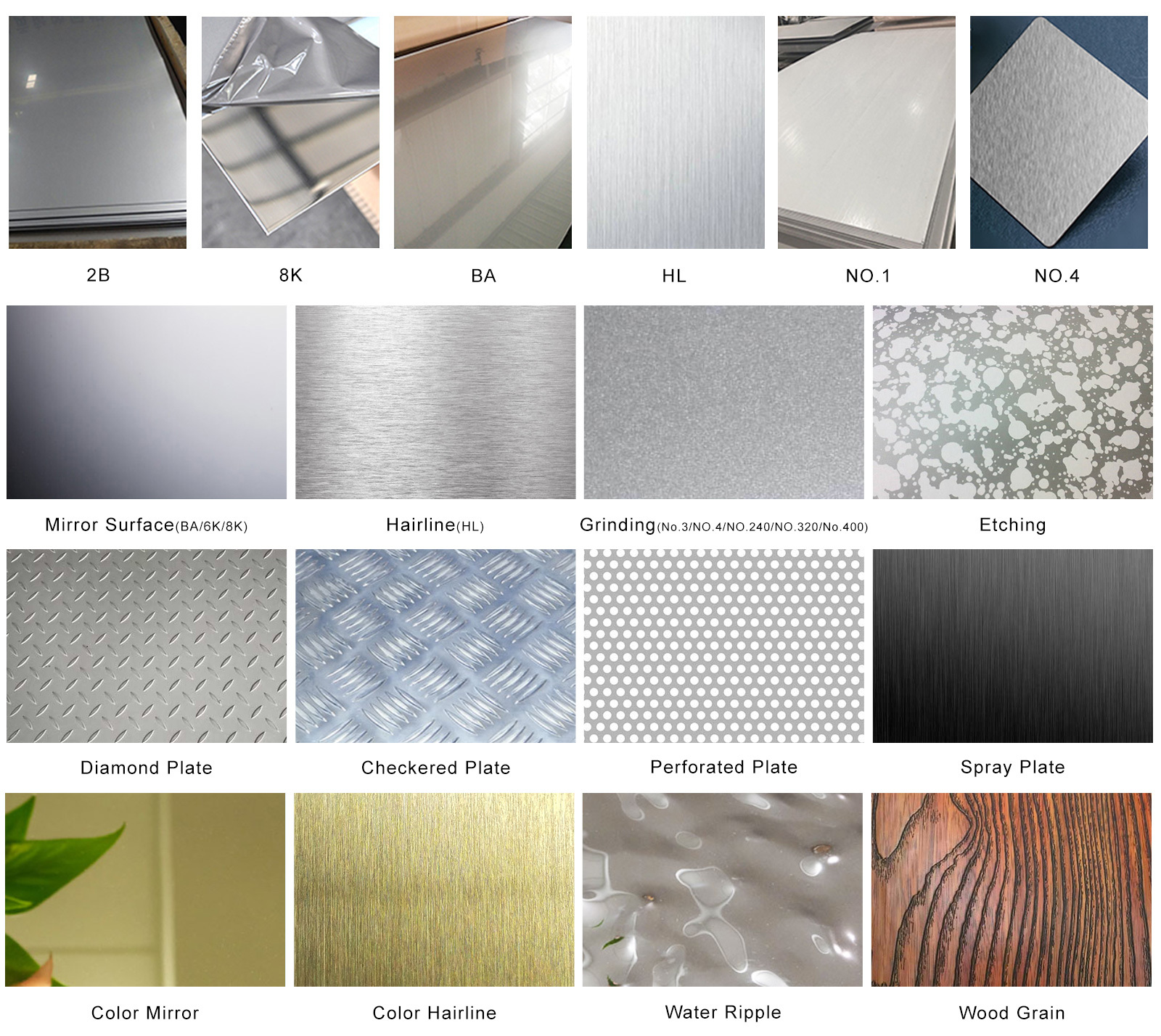

Surface Selection
|
No |
China | Japan | USA | South Korea | Germany | India | Australia | Taiwan, China | |
|
|
GB |
JIS |
ASTM |
UNS |
KS |
DIN |
BIS |
AS |
CNS |
| Austenitic stainless steel | |||||||||
|
1 |
12Cr17Mn6Ni5N |
SUS201 |
201 |
S20100 |
STS201 |
1.4372 |
10Cr17Mn6Ni4N20 |
201-2 |
201 |
|
2 |
12Cr18Mn9Ni5N |
SUS202 |
202 |
S20200 |
STS202 |
1.4373 |
- |
- |
202 |
|
3 |
12Cr17Ni7 |
SUS301 |
301 |
S20200 |
STS301 |
1.4319 |
10Cr17Ni7 |
301 |
301 |
|
4 |
06Cr19Ni10 |
SUS304 |
304 |
S30400 |
STS304 |
1.4301 |
07Cr18Ni9 |
304 |
304 |
|
5 |
022Cr19Ni10 |
SUS304L |
304L |
S30403 |
STS304L |
1.4306 |
02Cr18Ni11 |
304L |
304L |
|
6 |
06Cr19Ni10N |
SUS304N1 |
304N |
S30451 |
STS304N1 |
1.4315 |
- |
304N1 |
304N1 |
|
7 |
06Cr19Ni9NbN |
SUS304N2 |
XM21 |
S30452 |
STS304N2 |
- |
- |
304N2 |
304N2 |
|
8 |
022Cr19Ni10N |
SUS304LN |
304LN |
S30453 |
STS304LN |
- |
- |
304LN |
304LN |
|
9 |
10Cr18Ni12 |
SUS305 |
305 |
S30500 |
STS305 |
1.4303 |
- |
305 |
305 |
|
10 |
06Cr23Ni13 |
SUS309S |
309S |
S30908 |
STS309S |
1.4833 |
- |
309S |
309S |
|
11 |
06Cr25Ni20 |
SUS310S |
310S |
S31008 |
STS310S |
1.4845 |
- |
310S |
310S |
|
12 |
06Cr17Ni12Mo2 |
SUS316 |
316 |
S31600 |
STS316 |
1.4401 |
04Cr17Ni12Mo2 |
316 |
316 |
|
13 |
06Cr17Ni12Mo2Ti |
SUS316Ti |
316Ti |
S31635 |
- |
1.4571 |
04Cr17Ni12MoTi20 |
316Ti |
316Ti |
|
14 |
022Cr17Ni12Mo2 |
SUS316L |
316L |
S31603 |
STS316L |
1.4404 |
~02Cr17Ni12Mo2 |
316L |
316L |
|
15 |
06Cr17Ni12Mo2N |
SUS316N |
316N |
S31651 |
STS316N |
- |
- |
316N |
316N |
|
16 |
022Cr17Ni13Mo2N |
SUS316LN |
316LN |
S31653 |
STS316LN |
1.4429 |
- |
316LN |
316LN |
|
17 |
06Cr18Ni12Mo2Cu2 |
SUS316J1 |
- |
- |
STS316J1 |
- |
- |
316J1 |
316J1 |
|
18 |
022Cr18Ni14Mo2Cu2 |
SUS316J1L |
- |
- |
STS316J1L |
- |
- |
- |
316J1L |
|
19 |
06Cr19Ni13Mo3 |
SUS317 |
317 |
S31700 |
STS317 |
- |
- |
317 |
317 |
|
20 |
022Cr19Ni13Mo3 |
SUS317L |
317L |
S31703 |
STS317L |
1.4438 |
- |
317L |
317L |
|
21 |
06Cr18Ni11Ti S |
SUS321 |
321 |
S32100 |
STS321 |
1.4541 |
04Cr18Ni10Ti20 |
321 |
321 |
|
22 |
06Cr18Ni11Nb |
SUS347 |
347 |
S34700 |
STS347 |
1.4550 |
04Cr18Ni10Nb40 |
347 |
347 |
| Duplex stainless steel | |||||||||
|
1 |
- |
SUS329J1 |
329 |
S32900 |
STS329J1 |
1.4477 |
- |
329J1 |
- |
|
2 |
022Cr23Ni5Mo3N |
- |
S32205 |
F60 |
- |
1.4462 |
- |
2205 |
2205 |
|
3 |
022Cr25Ni7Mo4N |
- |
S32750 |
F53 |
- |
1.4410 |
- |
2507 |
2507 |
| Ferritic stainless steel | |||||||||
|
1 |
06Crl3Al |
SUS405 |
405 |
S40500 |
STS405 |
1.4002 |
04Cr13 |
405 |
405 |
|
2 |
022Cr11Ti |
SUH409 |
409 |
S40900 |
STS409 |
1.4512 |
- |
409L |
409L |
|
3 |
022Cr12 |
SUS410L |
- |
- |
STS410L |
- |
- |
410L |
410L |
|
4 |
10Cr17 |
SUS430 |
430 |
S43000 |
STS430 |
1.4016 |
05Cr17 |
430 |
430 |
|
5 |
10Cr17Mo |
SUS434 |
434 |
S43400 |
STS434 |
1.4113 |
- |
434 |
434 |
|
6 |
022Cr18NbTi |
- |
- |
S43940 |
- |
1.4509 |
- |
439 |
439 |
|
7 |
019Cr19Mo2NbTi |
SUS444 |
444 |
S44400 |
STS444 |
1.4521 |
- |
444 |
444 |
| Martensitic stainless steel | |||||||||
|
1 |
12Cr12 |
SUS403 |
403 |
S40300 |
STS403 |
- |
- |
403 |
403 |
|
2 |
12Cr13 |
SUS410 |
410 |
S41000 |
STS410 |
1.4006 |
12Cr13 |
410 |
410 |
|
3 |
20Cr13 |
SUS420J1 |
410 |
S42000 |
STS420J1 |
1.4021 |
20Cr13 |
420 |
420J1 |
|
4 |
30Cr13 |
SUS420J2 |
- |
- |
STS420J2 |
1.4028 |
30 Cr13 |
420J2 |
420J2 |
|
5 |
68Cr17 |
SUS440A |
440A |
S44002 |
STS440A |
- |
- |
440A |
440A |
