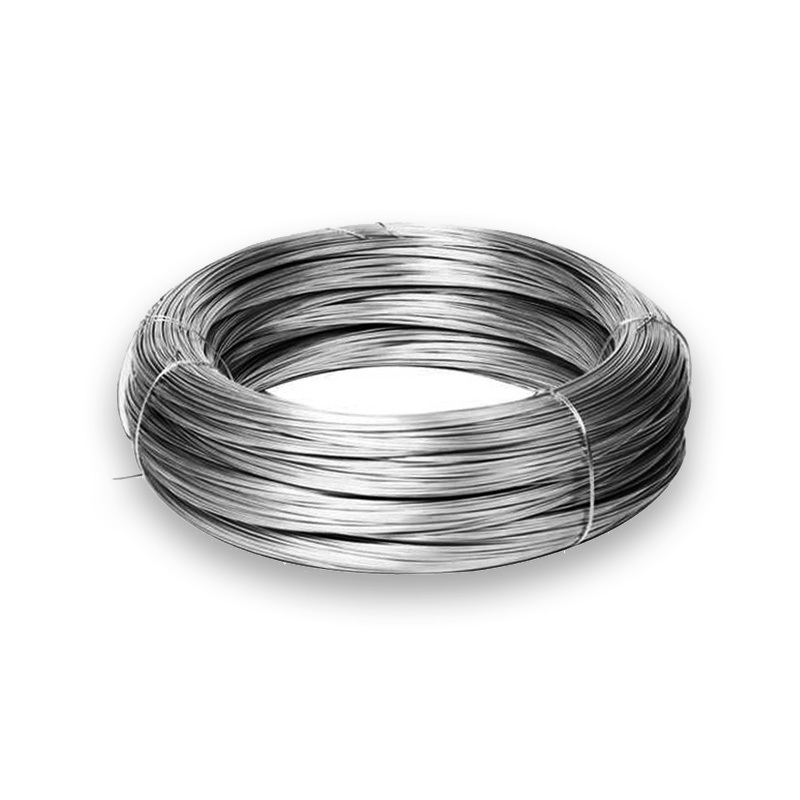

SAE-1008 Steel Wire Rod

Steel grade G10080 (SAE 1008) - low carbon material from which wire rod and round wire are produced in riots or cut rods. Standart: ASTM A510M. Standard specification for general requirements for carbon steel wire rod and round wire. Classification: Low-carbon steel.

Commodity name： SAE-1008 Steel Wire Rod

Category:

EMAIL:

Whatsapp:

Phone:

WeChat:

15163516688

Get a Quote

SAE-1008 Steel Wire Rod Description

SAE-1008 Wire Rod Specification
Nominal Diameter (mm)	Permissible Deviation (mm)	Nominal Cross Section (mm2)
Nominal Diameter (mm)	Permissible Deviation (mm)	Nominal Cross Section (mm2)	Nominal Weight (kg/m)	Permissible out – of Roundness(mm)
5.5	-/+ 0.3	0.238	0.186	0.48
6.0	-/+ 0.3	0.283	0.222
6.5	-/+ 0.3	0.332	0.260
7.0	-/+ 0.4	0.385	0.302	0.64
(*)8.0	-/+ 0.4	0.503	0.395
(**)10.0	-/+ 0.4	0.785	0.617
(**)12.0	-/+ 0.4	1.131	0.888
(**)14.0	-/+ 0.4	1.539	1.208
(**)16.0	-/+ 0.5	2.011	1.578	0.80

SAE-1008 Wire Rod Chemical Composition
Grade	C% (max)	Mn%	Si% (max)	S% (max)	P% (max)	Cr% (max)	Ni% (max)	Cu% (max)
SAE 1008	0.09	0.30-0.50	0.10	0.030	0.020	0.15	0.15	0.25

Scope of Application

Steel wire is widely used in the manufacture of many wire products.

Packing and delivery

Its main products include cold-rolled annealed plates, cold-rolled coated plates, hot-rolled steel, medium and thick plates, large profiles, medium profiles, bars, wires and other products. Among them, aluminum-coated steel, zinc-aluminum-magnesium coated steel, structural steel, mining steel, ultra-high strength steel and other products are well-known throughout the country.
